Description

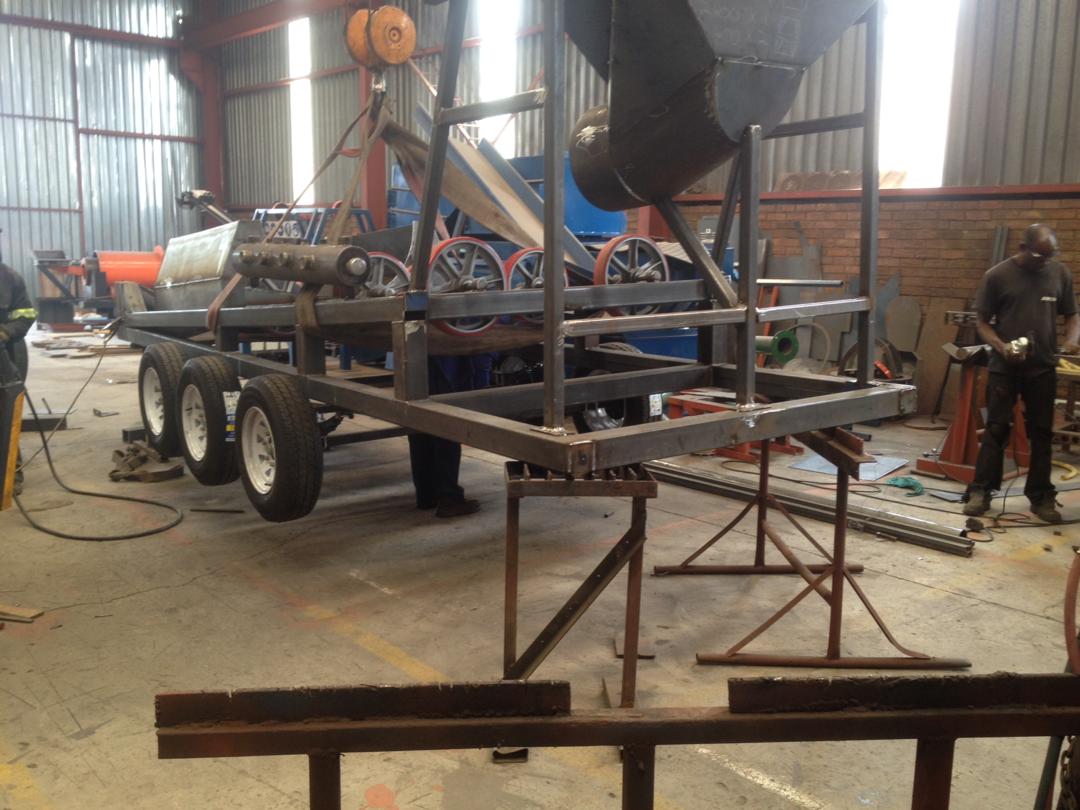

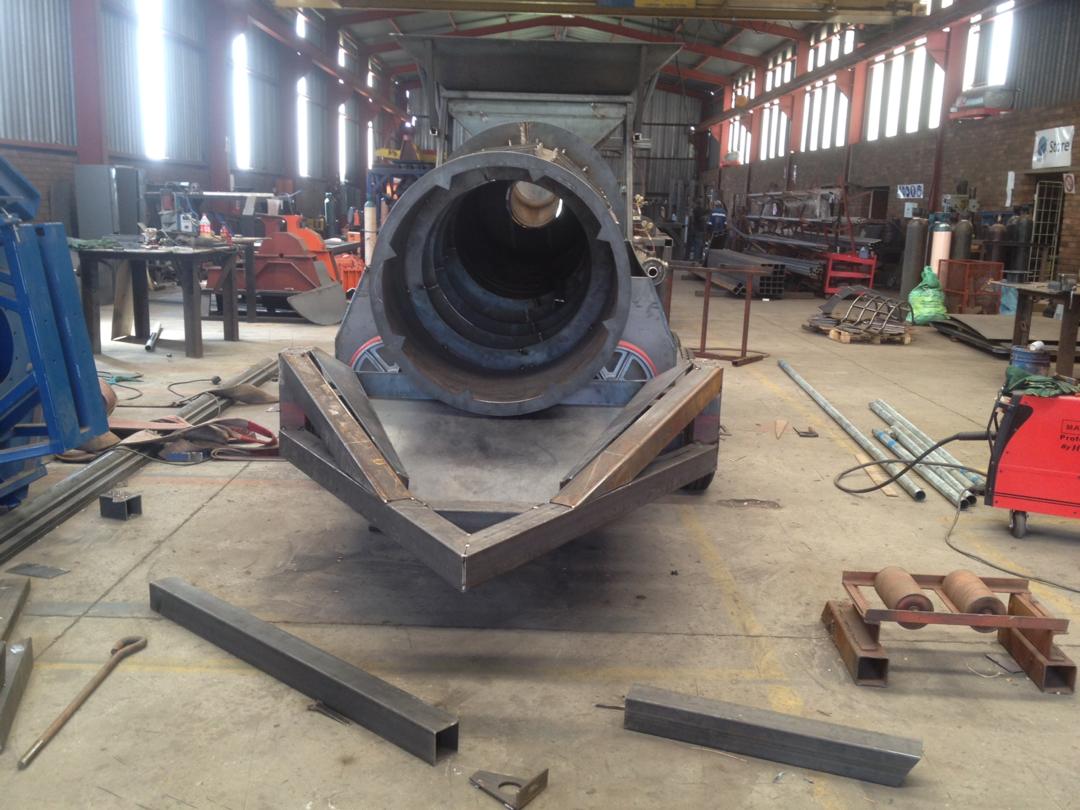

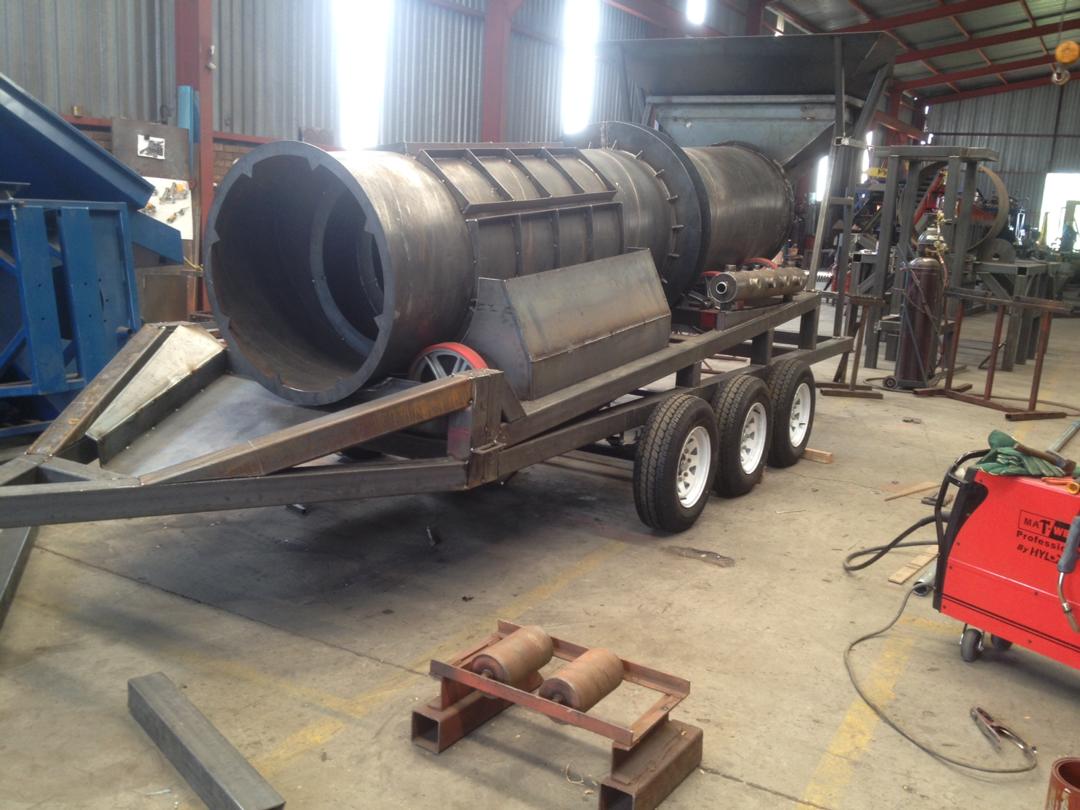

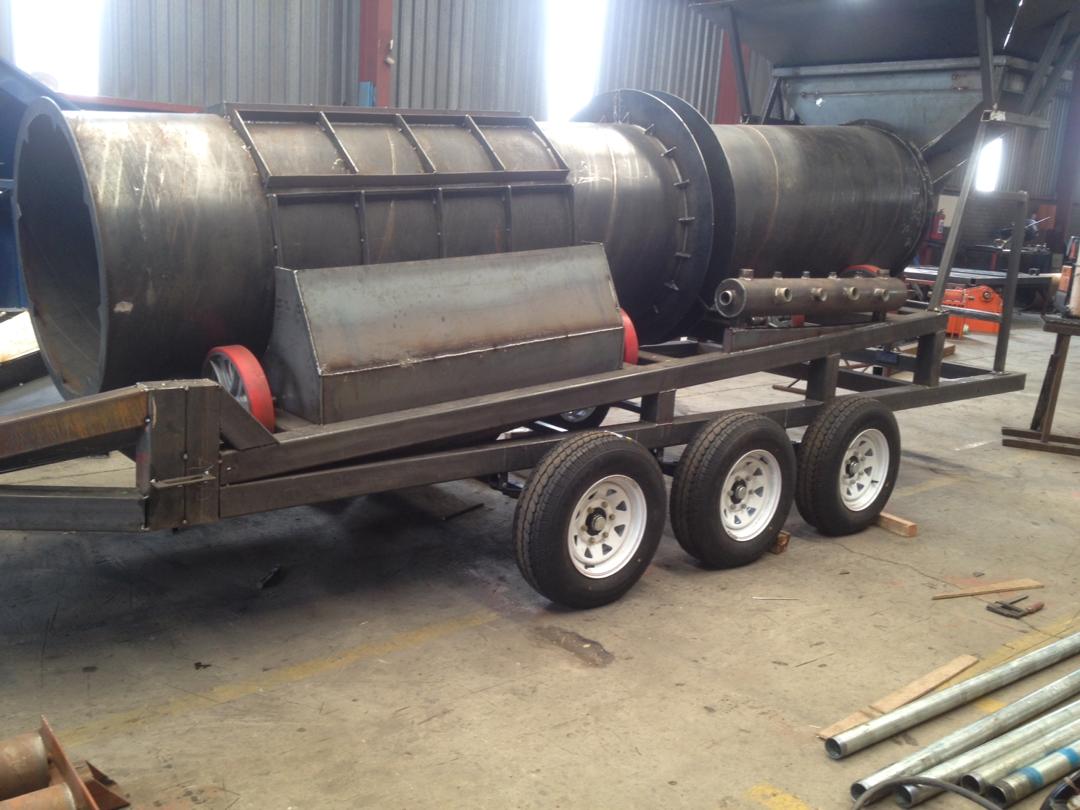

| General description: | 15-20TPH Reverse Helix Trommel Wash Plant, build onto a double axle trailer and fitted with jack stands. The ultimate small scale alluvial gold mining solution | |
|

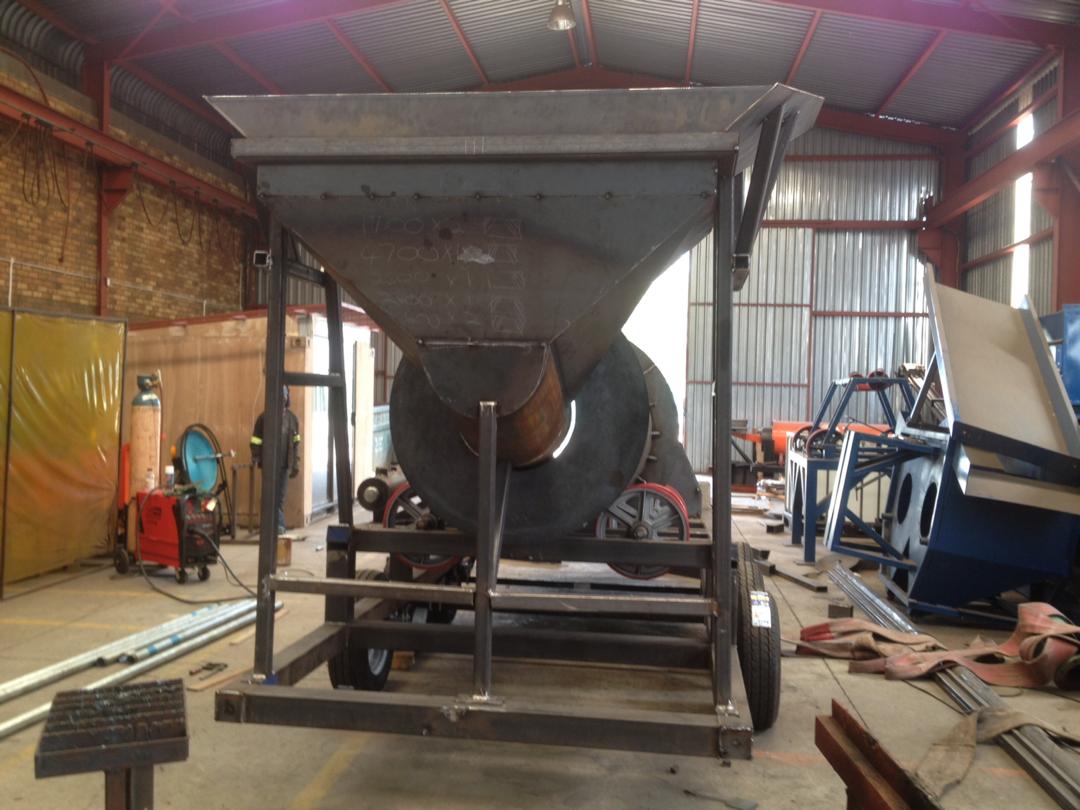

Feed hopper with sizing grizzly (max feed size 120mm) and integrated dual spray bar | |
| Scrubber with lifters and 6mm screens | ||
| 4 start 10mm spiral drum | ||
| Top sluice with mat, rifles and nugget trap, for high concentrate | ||
| Secondary rotary screen for larger nuggets | ||
| Lower sluice to act as a policeman sluice for the top sluice, rotary Grizzley and spiral discharge (specialized riffles for larger nuggets) | ||
| 6″ manifold | ||
| 2 x 1″ & 4 x 2″ individual water control valves for optimal distribution and recovery | ||
| 4″ water inlet | ||
| Adjustable jack arms for quick angle adjustment with angle indicator | ||
| Discharge side launder for oversize | ||
| Tons per hour: | 14 to 22 tons per hour dependent on the clay content | |
| Transport dimensions: | 5,1m long x 2,3m wide x 2,6 high | |
| Working dimensions: | 6.5m long x 2,8 wide x 2,4 high | |
| Power requirements: | Running: 5,5 Kw, 380VAC / Start-up: 7Kw, 380VAC (50 Hz) | |
| Water requirements: | (based on a SG of 1.8) 101,000 Lt water per hour | |
| Water inlet: | 3″ / 75mm | |
| Option extras not included: | Water pump | |
| Generator |
